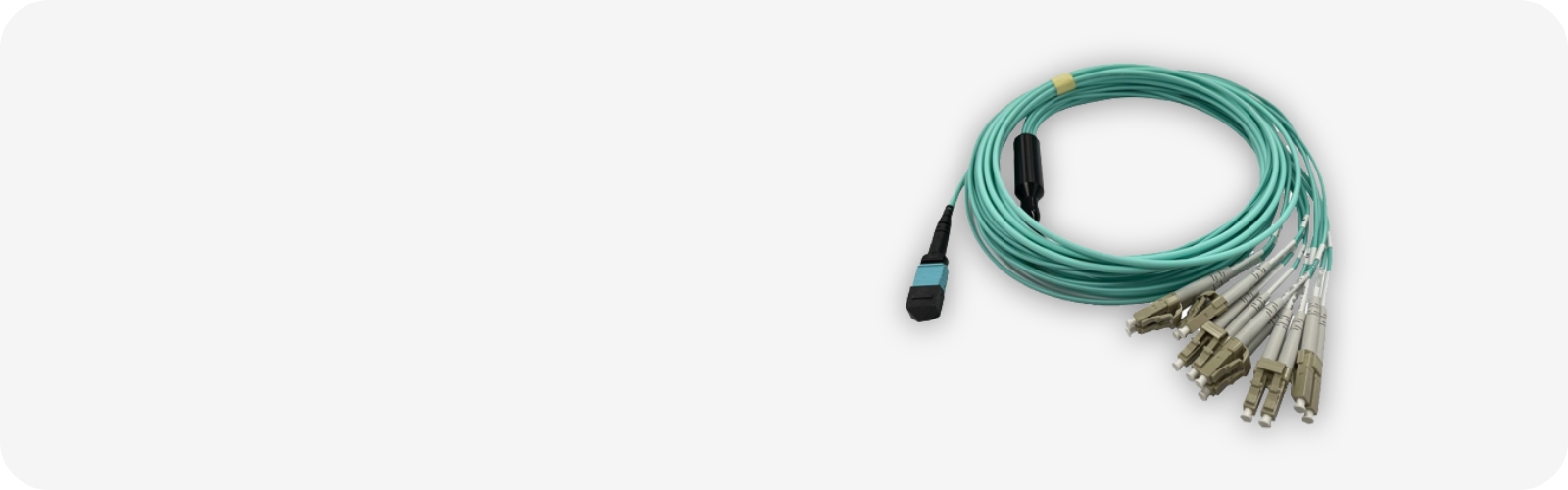

MPO/MTP Patch code
MPO patch cord is a special optical patch cord designed for high-density optical fiber connections. It is a product that aggregates multiple optical fiber cores into a single connector using MPO/MTP connectors. It is widely used in data centers and high-speed network environments, and supports high-speed networks of 40G, 100G, and more.
Data Center SolutionsMPO/MTP patch code

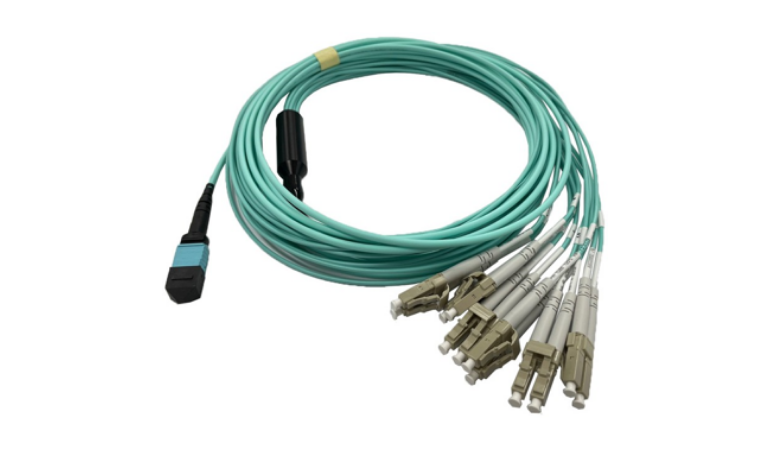

MPO/MTP Patch Cord
- Product Information
- Specifications
- Order Information
-
Features
- Compliant with IEC, JIS, TIC, etc. standards.
- Multi-channel high-density connection.
- Fast and stable high-speed data transmission.
- Fast and efficient installation.
- High reliability and durability guaranteed.
- Easy maintenance.
-
Application Area
- Large-scale data centers
- High-speed network and communications infrastructure
- Cloud computing environments
- Automation and industrial networks
Specifications
| Multi Mode | Single Mode | |||
|---|---|---|---|---|
| MM MT Elite Multi mode MT Ferrule | Standard Multi mode MT Ferrule | SM MT Elite Single mode MT Ferrule | Standard Single mode MT Ferrule | |
| Insertion Less | 0.10dB Typical 0.35dB Maximum |
0.20dB Typical 0.60dB Maximum |
0.10dB Typical 0.35dB Maximum |
0.25dB Typical 0.75dB Maximum |
| Optical Return Loss | >20dB | >20dB | >60dB(8˚Angle Polish) | >60dB(8˚Angle Polish) |
| Durability | <2.0dB typical change, 1000 matings | |||
| Repeatability | <2.0dB typical change | |||
| Tensile Strength | >10kg | |||
| Operating Tenperature | -40℃ to +85℃ | |||
Order Information (MPO/MTP Patch code)
| PTLC (Optical Patch Cord) | |
| Fiber Type | 2=SM(G652D) 7=SM(G657A) A=MM(62.5/125) B=MM(50/125) C=OM3(50/125) D=OM4(50/125) P=PM |
|---|---|
| Fiber Count | 8=8C A=12C B=24C C=36C D=48C |
| Cable Type | X=Ribbon-Jacket Y=Bare Ribbon Z=Round |
| Connector Type Side A | 1=MPO(Male) 2=APC(Female) |
| Polishing Type | 1=PC 2=APC |
| Housung color | 1=BLUE 2=Green 3=Gray H=Aqua |
| Connector Type Side B | 1=MPO(Male) 2=MPO(Female) 3=LC 4=SC |
| Polishing Type | 1=PC 2=APC |
| Cable length (m) | 1=1m 2=2m - - 2A=2.1m 2B=2.2m |
| Fan out length (m) | 0A=0.1m 0B=0.2m 0C=0.3m - - - - 1=1m 2=2m |
| Polarity | A=Polarity A B=Polarity B C=Polarity C |
