FD-SUB connector

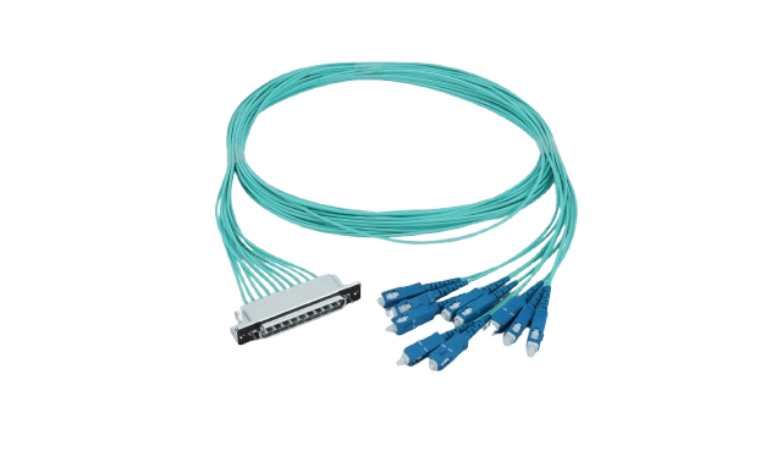

FOSTEC FD-SUB connector incorporating FOSTEC's superior optical connection technology, it is mainly used to connect devices such as computers and industrial equipment in electronic and data communication systems.
- Product Information
- Specifications
- Order Information
-
Features
- High-density optical connection for efficient space utilization and cost reduction.
- Possible to connect photoelectric and electrical simultaneously.
- Increased user convenience through rapid multi-channel combination.
- Customized production possible according to customer requirements.
-
Application Area
- Defense and Aerospace
- Industrial Optical Networks
Specifications
| FD-SUB | ||
|---|---|---|
| PARAMETER | Multimode(@850/1310nm) | Single mode(@1310/1550nm) |
| Insertion loss | 1~4 ch 1.0dB Max 1.5dB Max over 4ch |
1~4 ch 1.0dB Max 1.5dB Max over 4ch |
| Operating temperature | -60℃ to +85℃ | |
| Storage temperature | -60℃ to +85℃ | |
| Durability | Min 500 matings | |
| Vibration | 10-2000Hz, 3 directions, 1.52mm amplitude @20g acceleration | |
| Terminus | M29504/4-4208(4209, 4210, 4040) ㅡ29504/5-4237(4238, 4239, 4046) |
|
Order Information (FD-SUB)
FODC-A-B-C-D-E-F-G-H-I
| FD-SUB connector | ||||||
|---|---|---|---|---|---|---|
| ACONNECTOR TYPE A | PC - PLUG | |||||
| RC - RECEPTACLE | ||||||
| BMETERIAL / SHELL FINISH | C - ALMUMINUM SHELL / CHROMATE 1A | |||||
| F - ALUMINUM SHELL / ANODIC COATING | ||||||
| CNUMBER OF FIBERS | 0 - 0 OPTICAL CHANNEL | |||||
| 2 - 2 OPTICAL CHANNEL | ||||||
| 4 - 4 OPTICAL CHANNEL | ||||||
| 8 - 8 OPTICAL CHANNEL | ||||||
| 10 - 10 OPTICAL CHANNEL | ||||||
| DNUMBER OF ELECTRICAL | 0 - NO ELECTRICAL CONTACTS | |||||
| 2 - 2 ELECTRICAL CONTACTS | ||||||
| 4 - 4 ELECTRICAL CONTACTS | ||||||
| 8 - 8 ELECTRICAL CONTACTS | ||||||
| 10 - 10 ELECTRICAL CONTACTS | ||||||
| EFIBER TYPE | 09 - SINGLE MODE(9/125) | |||||
| 52 - MULTI MODE(50/125) - OM2 | ||||||
| 53 - MULTI MODE(50/125) - OM3 | ||||||
| 54 - MULTI MODE(50/125) - OM4 | ||||||
| 62 - MULTI MODE(62.5/125) - OM1 | ||||||
| FWAVELENGTH | A - 850/1300nm | |||||
| B - 1310/1550nm | ||||||
| C - 850nm ONLY | ||||||
| D - 1300nm ONLY | ||||||
| E - 1310nm ONLY | ||||||
| F - 1550nm ONLY | ||||||
| GCABLE DIAMETER | 0.9 : 0.9mm | |||||
| 2.0 : 2.0mm | ||||||
| HCONNECTOR TYPE B | A - SAME AS END A | |||||
| SC - SC TYPE CONNECTOR | ||||||
| LC - LC TYPE CONNECTOR | ||||||
| ST - ST TYPE CONNECTOR | ||||||
| FC - FC TYPE CONNECTOR | ||||||
| ICABLE LENGTH | 1 - 1M | 10 - 10M | 100 - 100M | |||
