Optical patch code

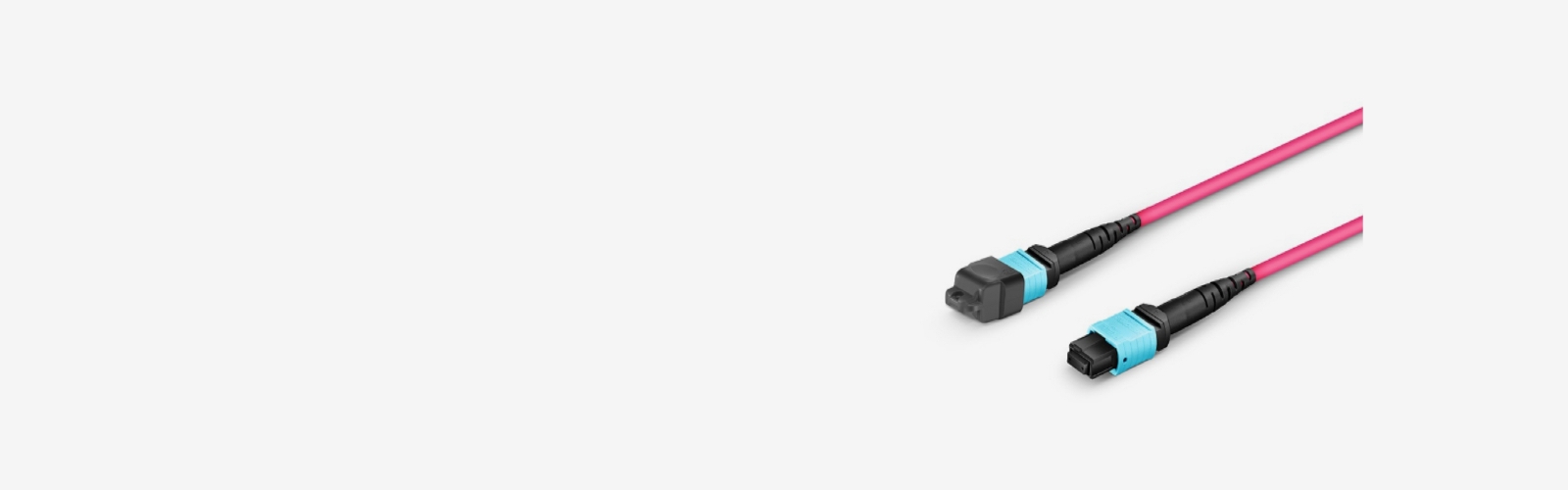

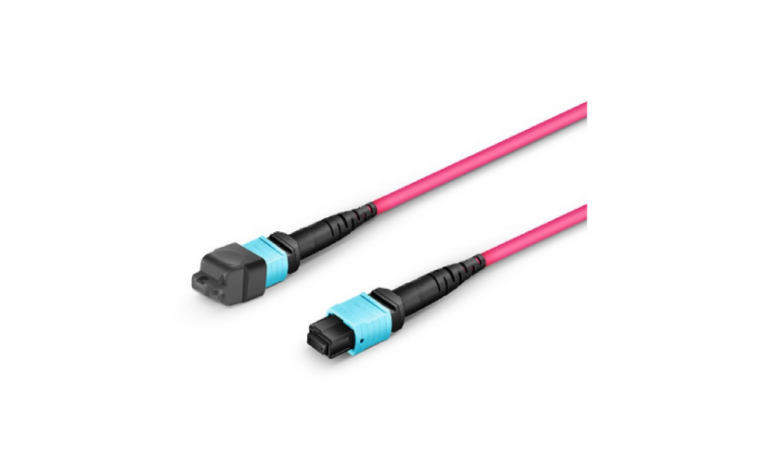

This is a cable used to transmit optical signals in a communication network using optical fiber. It is mainly used to connect data centers, communication rooms, and network equipment, and plays a role in transmitting signals between optical transceivers and FDFs.
Optical patch code
Optical Fiber Patch Cord
- Product Information
- Specifications
- Order Information
-
Features
- Compliant with IEC, JIS, TIC, etc. standards
- Fast and stable high-speed data transmission
- High durability and excellent environmental reliability, low loss
- Lightweight and flexible design for narrow and complex environments
- Customized product manufacturing (raw materials, product length, etc.)
-
Application Area
- Data Centers
- Communication Networks
- Enterprise and Industrial Networks
- Military and Defense
- Medical
Specifications
| Characteristics | Conditions | Value |
|---|---|---|
| Insertion Loss | Against Reference connector | <0.2dB |
| Return Loss | SPC | >40dB |
| UPC | >50dB | |
| APC | >60dB | |
| Durability | 1000matings | <0.2dB |
| Temperature Cycling | -40 ~ +80℃ (42 cycles) | <0.2dB |
| Humidity Cycling | 75℃, 95%/336hr | <0.2dB |
| Vibration | 10 ~ 55Hz(2Hr) | <0.2dB |
| Flex Test | 0˚→90˚→0˚→90˚, 5kgf(100cycles) | <0.2dB |
| Twist Test | ø0.9㎜ : 0.75kgf, ø2.0㎜ : 1.53kgf | <0.2dB |
| Straight Pull Test | 100N Load | <0.2dB |
| Impact | 1.5m drop, 8tlmes | <0.2dB |
Spec of Fiber
| Items | Units | Specification | |
|---|---|---|---|
| Attenuation | 1310nm | dB/km | ≤0.50 |
| 1490nm* | ≤1310nm measured value | ||
| 1550nm | ≤0.50 | ||
| Chromatic dispersion | 1285-1330nm | ps/nm.㎞ | ≤3.5 |
| 1550nm | ≤18 | ||
Order Infomation
OPC
Optical
Patch
Cord
Fiber
Type
- G.652 [9/125]
- G.657 G.655
[9/125] - OM1 [62/125]
- OM2 [50/125]
- OM3 OM4
[50/125] - PM
(Polarization Maintaining)
Connector
Type
Side A
- SC, FC, ST
- LC, MU
- MTRJ, MPO
- E2000, LX, 5
- ESCON, SMA
- Other
Polishing
Type
- PC
- SPC
- UPC
- APC
Connector
Type
Side B
- SC, FC, ST
- LC, MU
- MTRJ, MPO
- E2000, LX, 5
- ESCON, SMA
- Other
Polishing
Type
- PC
- SPC
- UPC
- APC
Cable Length
[m]
- 1~999
Cable
Type
- SP=Simplex
- DP=Duplex
(Zip cord) - R=Duplex
(Round cord) - Other
Cable
Diameter
- ø0.9
- ø2.0
- ø2.4
- ø3.0
- ø5.5
- Other
