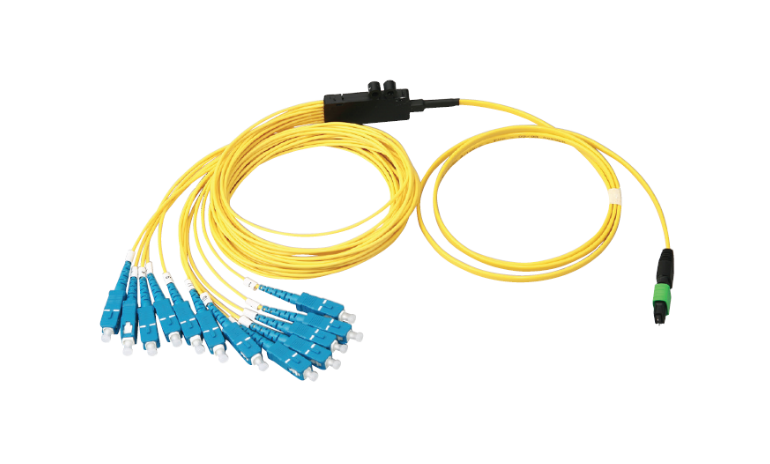

FANOUT patch code
This product is used when configuring an optical network by simply installing patch cords without performing cluster work.
Data Center SolutionsFANOUT patch code

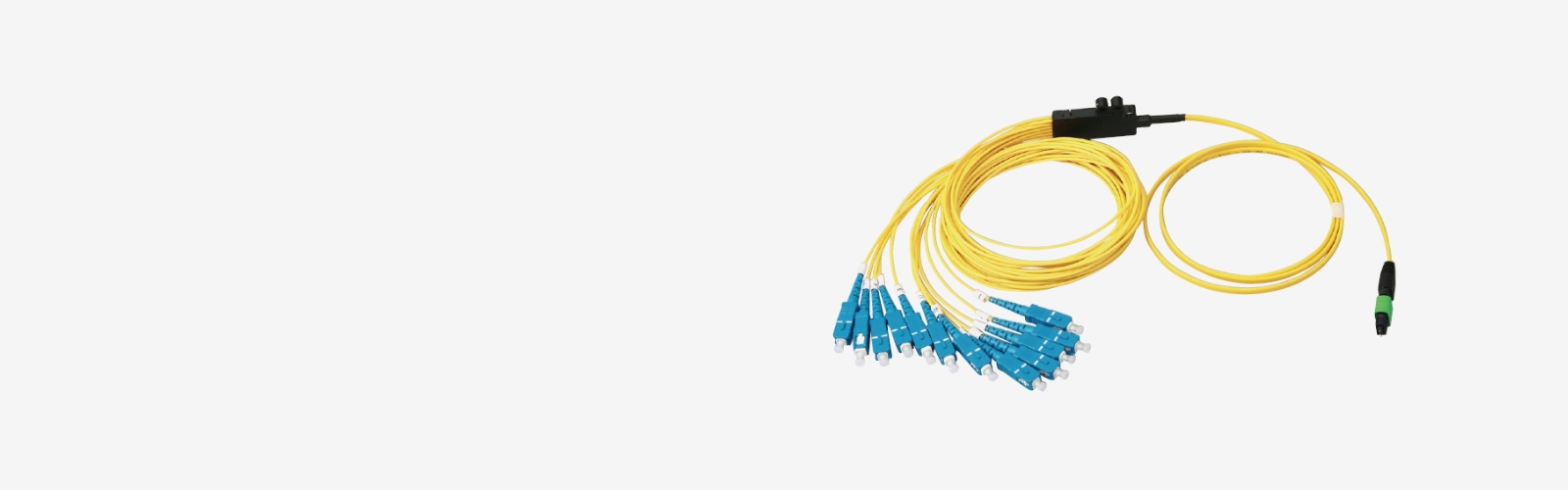

Panout Patch Cord
- Product Information
- Specifications
- Order Information
-
Features
- IEC, JIS, Telcordia application
- Low insertion loss
- Increased optical connector integration rate
- Efficient distribution of optical fiber
-
Application Area
- Large-scale data centers
- High-speed network and communications infrastructure
- Cloud computing environments
- Automation and industrial networks
Specifications
| Parameter | Condition | Value [dB] | ||
|---|---|---|---|---|
| Min | Typical | Max | ||
| Insertion Loss | < 0.15 | < 0.30 | ||
| Return Loss | SPC | > 40 | > 45 | |
| UPC | > 50 | > 55 | ||
| APC | > 60 | > 65 | ||
| Mating Durability | 500 times | < 0.20 | ||
| Temperature Cycling | -40℃ ~ + 85℃ | < 0.20 | ||
| Humidity Cycling | 75℃, RH 95% | < 0.20 | ||
| Vibration | 10~55Hz [3 Axis] | < 0.20 | ||
| Impact | 1.5m drop, 8 times | < 0.20 | ||
