PTLC

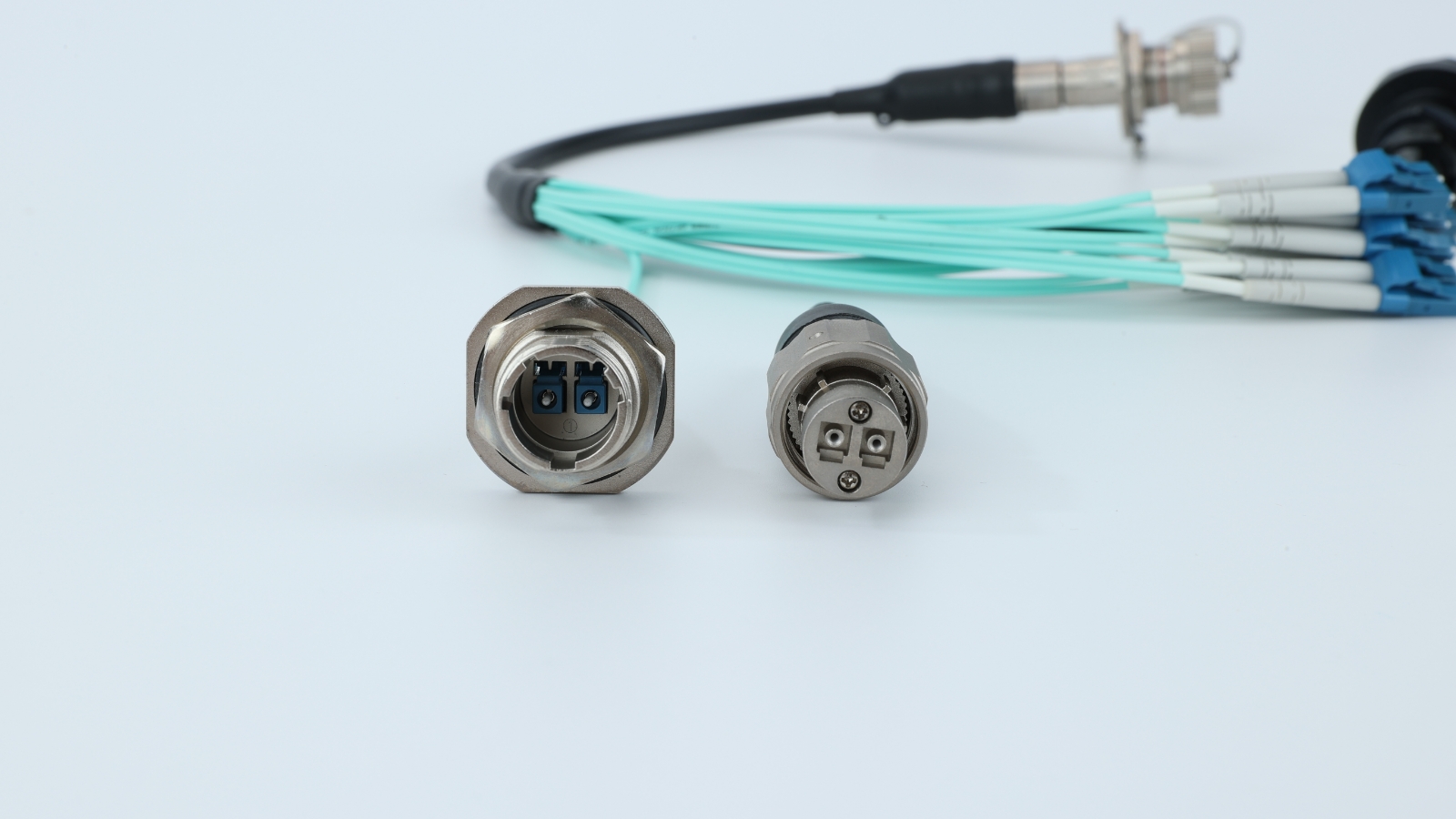

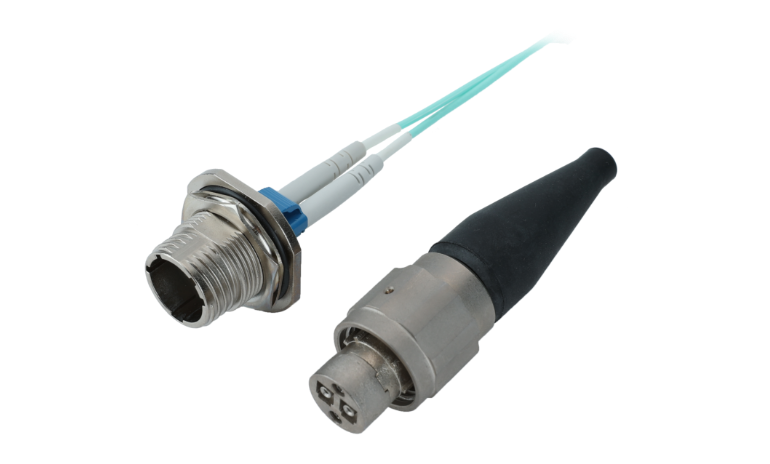

An outdoor connector which comes pre-loaded with LC connectors, providing a quick and easy installation solution.
Contact ConnectorsPTLC
PTLC Fiber Optic connectors
- Product Information
- Specifications
- Order Information
-
Features
- Provides high fiber density in a relatively small circular connector while maintaining the advantages of MIL-DTL-38999 Series III connectors.
- Provides precise interface between fibers with three-step alignment.
-
Application Area
- Defense and Aerospace
- Industrial Optical Networks
Specifications
| PTLC | ||
|---|---|---|
| Fiber types / Imsertion Loss | Single Mode 91125nm : Typ < 0 14 dB Max < 0 30 dB | Multi Mode 62 51125nm : Typ < 0 35 dB Typ < 0 35 dB |
| Return Loss | - 55 dB | - 25 dB |
| Operatingtemperature | -46℃to +71℃ | |
| Durability | Bayonet type < < 50 cycles Threa ded type < 500 cycles | |
| Materials | Shell | BRASS & ZAMAK#3,QQ-2-363 E |
| Ferrule | Zircon ia Ceramic | |
| Alignment Sleeve | Zircon ia Ceramic | |
