WBEAM

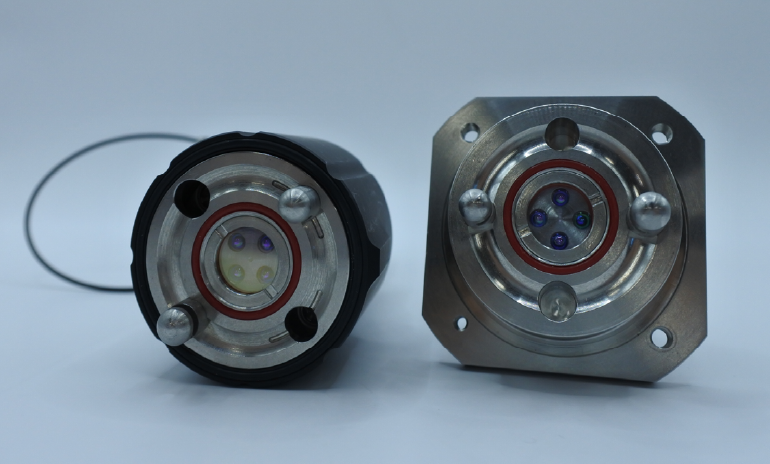

WBEAM connector is a non-contact optical connector designed for quickly establishing high-speed optical transmission links, even in harsh environments. It features a unique window shielding structure that provides enhanced environmental durability compared to previous non-contact designs. This makes it less susceptible to dust and contaminants, ensuring stable optical performance with easy maintenance. It has Hermaphroditic Twist Locking structure which allow to extend the length of the system using Plug to Plug multiple cable assemblies.

  • Product Information
  • Specifications
  • Order Information

Download Resources

  • Features

    Features & Benefits

    •Excellent repeatability of hermaphroditic design.
    •Easy Clean and maintenance system with additional window
    •Stable optical signal transmission with expanded beam technology
    •Excellent environmental resistance to various external shocks and vibration


  • Application Area

    •Naval ship combat system, unmanned surface ships, guided weapon systems
    •Mobile military tactical shells, armored vehicle optical networks
    •Tactical weapon systems
    •Various industrial applications such as plants, energy, and the environment
    •Infrastructure installation in harsh environments C4I systems

Specifications

FOSTEC WBEAM CONNECTOR SPECIFICATION
PARAMETER MULTIMODE(@850nm/1300nm)
Insertion Loss 2ch & 4ch Typical 0.75dB, Max 2.0dB
Operating Temperature -40℃ to +85℃
Thermal Shock -55℃ to +85℃
Mating Durability 10,000 Cycles
Water Immersion IP68 (2meter, 48hrs)
Impact 26 Impacts @ 1.2m
Vibration 10 to 2000Hz / 15g
Shock 50g for 11ms, EIA/TIA-455-14, Condition A
Salt Spray  500 Hours

Order Information (WBEAM)

FOSTEC WBEAM CONNECTOR
A: CONNECTOR TYPE A P - PLUG
BD - BULKHEAD D-HOLE
BS - BULKHEAD SQUARE FLANGE
B: SHELL MATERIAL S - STAINLESS STEEL, SUS 303
C: NUMBER OF FIBER 2 - 2 OPTICAL CHANNEL
4 - 4 OPTICAL CHANNEL
D: FIBER TYPE 62 - MULTI MODE OM1(62.5/125)
52 - MULTI MODE OM2(50/125)
53 - MULTI MODE OM3(50/125)
54 - MULTI MODE OM4(50/125)
E: WAVELENGTH A - 850/1300nm
B - 850nm ONLY
C - 1300nm ONLY
F: CABLE DIAMETER Ø4.6 - 4.6MM
Ø5.5 - 5.5MM
G: CONNECTOR TYPE B A - SAME AS CONNECTOR A
LC - LC TYPE CONNECTOR
SC - SC TYPE CONNECTOR
ST - ST TYPE CONNECTOR
FC - FC TYPE CONNECTOR
H: CABLE DIAMETER 001 - 1M
050 - 50M
100 - 100M
