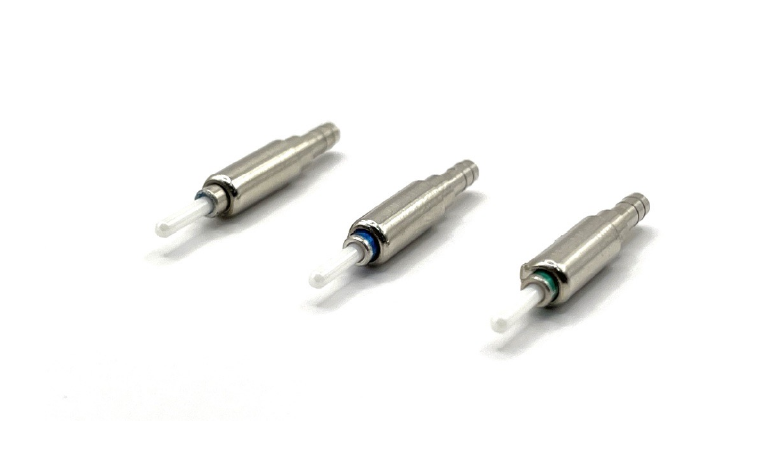

ARINC801 Terminus
ARINC 801 is a high-performance, next-generation fiber optic connector standard for commercial aviation and military aerospace, offering a standardized, easy-to-maintain, high-density alternative to legacy MIL-SPEC termini such as M29504.
- Product Information
- Specifications
- Order Information
-
Features
- Excellent optical performance guaranteed by precision tolerance management
- Applicable to 38999 contact connectors
-
Application Area
- Defense Industry
- Optical Communication Networks
Specifications
|
Specification |
||
|
Operation Temperature |
-55°C to +125°C |
Dependent on epoxy and cable |
|
Thermal Cycling |
-55°C to +125°C |
|
|
Thermal Shock |
-55°C to +85°C |
|
|
Temperature Life |
+110°C for 240 hours |
|
|
Vibration |
X Y Z 23.1G @ 8hours each axis |
|
|
Mating Durability |
Min 500 Times |
|
|
Salt Spray |
500 hours |
|
|
Terminus Mating Force |
5 lbs.[22.2 N] nominal |
|
|
Weight |
0.7 grams max |
|
|
Insertion Loss |
|
|
SM 9/125 |
≤0.50dB (MAX), ≤0.30dB(TYP) |
|
MM 62.5/125 |
≤0.50dB (MAX), ≤0.30dB(TYP) |
|
MM 50/125 |
≤0.50dB (MAX), ≤0.30dB(TYP) |
|
Return Loss |
|
|
SM / PC |
≥ 30dB |
|
SM / UPC |
≥ 40dB |
|
SM / APC |
≥ 60dB |
Order Information (ARINC801 Terminus)
|
Part No. |
Fiber Type |
A Dia(㎛) |
|
|
F1000-504SMPI |
-S50 |
9/125 (Single Mode), UPC |
125.0 |
|
-S55 |
9/125 (Single Mode), UPC |
125.5 |
|
|
-S60 |
9/125 (Single Mode), UPC |
126.0 |
|
|
-A50 |
9/125 (Single Mode), APC |
125.0 |
|
|
-A55 |
9/125 (Single Mode), APC |
125.5 |
|
|
-A60 |
9/125 (Single Mode), APC |
126.0 |
|
|
-M55 |
50/125 or 62.5/125 (Multi Mode) |
125.5 |
|
|
-M60 |
50/125 or 62.5/125 (Multi Mode) |
126.0 |
|
|
-M70 |
50/125 or 62.5/125 (Multi Mode) |
127.0 |
|
