Field Splicer(MOFS-1)

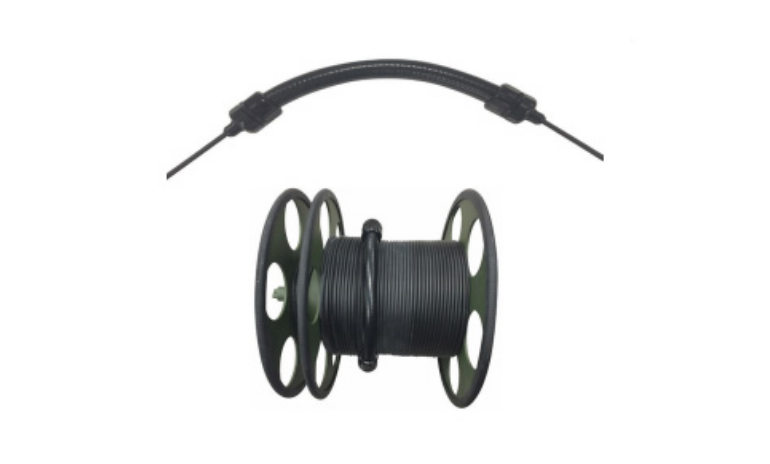

This kit is designed to repair field cables in the field in the event of a cut or break. It can connect up to 4ch and once connected, it is IP67 rated for superior water and dust resistance.
- Product Information
- Specifications
- Order Information
-
Features
- Outdoor field emergency recovery kit.
- IP68 rated waterproof and dustproof.
- Applicable to 1~4 channel cables.
-
Application Area
- Defense Industry
- Optical Communication Networks
Specifications
| MOFS-1 | |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Size | Max 350mm |
| Acceptable cable | ø5~ø10mm , 2~4core, SMF, MMF |
| Cable Retention | 1000 N ( ca ble dependant) |
| Water resistance | IP68 |
| Bending Radius | 75mm |
| Mechanical shock | Withstands 8-foot drop on concrete, 8 times |
Order Information (Field Splicer(MOFS-1))
Preparing
