MIL-PRF-29504/14&15 Terminus

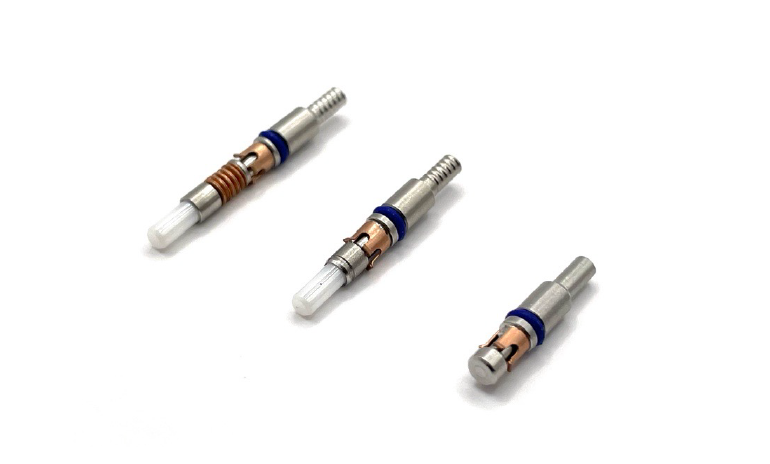

FOSTEC Military fiber optic terminus(MIL-PRF-29504/14 & 29504/15 is designed to connect into a pin/socket by physical contact. It is usually used for connecting with MIL-DTL-28876 Series III connector. FOSTEC’s unique alignment techniques maximize optical performance and provide reliable.
- Product Information
- Specifications
- Order Information
-
Features
- Excellent optical performance guaranteed by precision tolerance management
- Applicable to 38999 contact connectors
-
Application Area
- Defense Industry
- Optical Communication Networks
Specifications
|
Specification |
||
|
Operation Temperature |
-65°C to +150°C |
Dependent on epoxy and cable |
|
Temperature Life |
+110°C for 240 hours |
|
|
Vibration |
X Y Z 23.1G @ 8hours each axis |
|
|
Mating Durability |
Min 500 Times |
|
|
Salt Spray |
500 hours |
|
|
Terminus Mating Force |
5 lbs.[22.2 N] nominal |
|
|
Weight |
0.7 grams max |
|
|
Insertion Loss |
|
|
SM 9/125 |
≤0.75dB (MAX), ≤0.35dB(TYP) |
|
MM 62.5/125 |
≤0.75dB (MAX), ≤0.35dB(TYP) |
|
MM 50/125 |
≤0.75dB (MAX), ≤0.35dB(TYP) |
|
Return Loss |
|
|
SM / PC |
≥ 40dB |
|
SM / UPC |
≥ 50dB |
Order Information (MIL-PRF-29504/14&15 Terminus)
|
Pin Terminus(M29504/14) |
||||
|
Part No. |
Fiber Type |
A Dia(㎛) |
Reference No. |
|
|
F1000-501SMPI |
-S50 |
9/125 (Single Mode) |
125.0 |
M29504/14-4140C |
|
-S55 |
9/125 (Single Mode) |
125.5 |
N/A |
|
|
-S60 |
9/125 (Single Mode) |
126.0 |
M29504/14-4141C |
|
|
-M55 |
50/125 or 62.5/125 (Multi Mode) |
125.5 |
N/A |
|
|
-M65 |
50/125 or 62.5/125 (Multi Mode) |
126.0 |
M29504/14-4131C |
|
|
Socket Terminus(M29504/15) |
||||
|
Part No. |
Fiber Type |
A Dia(㎛) |
Reference No. |
|
|
F1000-504SMPI |
-S50 |
9/125 (Single Mode) |
125.0 |
M29504/15-4180C |
|
-S55 |
9/125 (Single Mode) |
125.5 |
N/A |
|
|
-S60 |
9/125 (Single Mode) |
126.0 |
M29504/15-4181C |
|
|
-M55 |
50/125 or 62.5/125 (Multi Mode) |
125.5 |
N/A |
|
|
-M60 |
50/125 or 62.5/125 (Multi Mode) |
126.0 |
M29504/15-4171C |
|
|
-M70 |
50/125 or 62.5/125 (Multi Mode) |
127.0 |
M29504/15-4172C |
|
|
Dummy Terminus(M29504/3) |
||||
|
Part No. |
Fiber Type |
A Dia(㎛) |
Reference No. |
|
|
F1000-501DT-NA |
- |
- |
- |
M29504/3-4138 |
