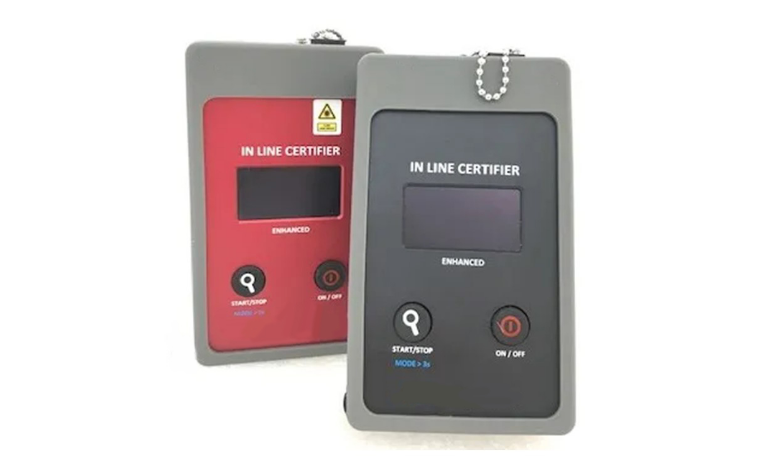

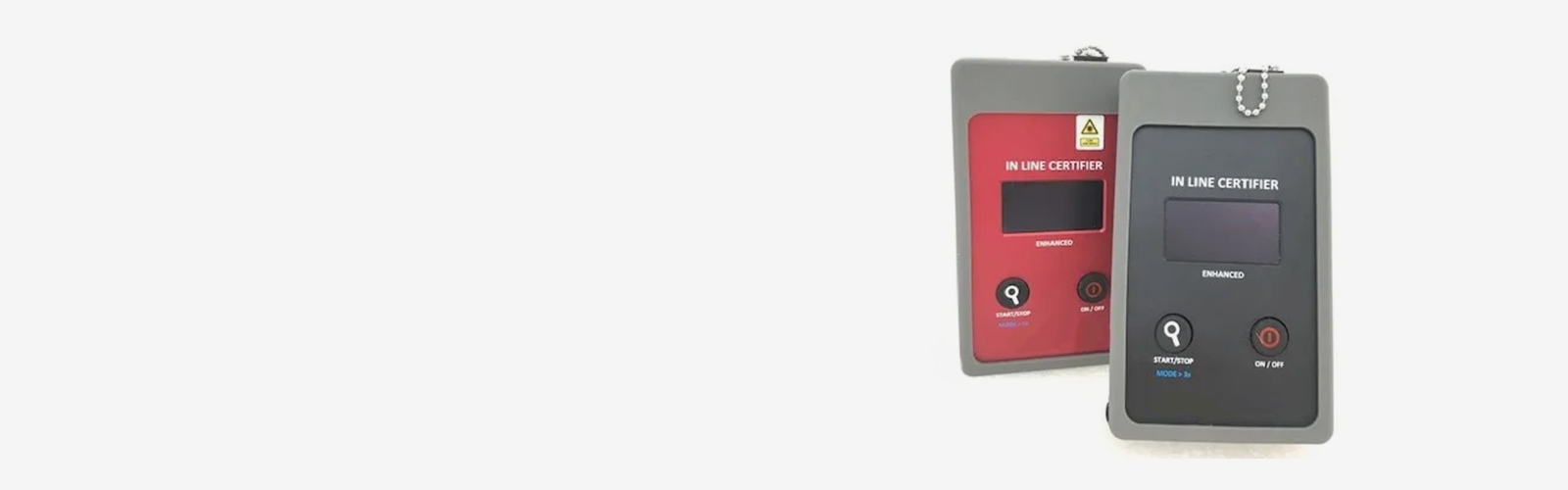

Diagonal Detectors
It is a measuring device for determining used and unused lines in an optical subscriber network.
Optical Access&MaintenanceDiagonal Detectors
FTTH
- Product Information
- Specifications
- Order Information
-
Features
- Small and light, easy to carry, durable.
- Easy and fast operation.
- Detects ONT/ONU presence through vibration.
- Supports domestic optical communication modes such as G-PON / E-PON / XGS-PON / NG-PON
- Self-inspection function.
- Detection possible without service interruption (only for Probe items)
- High-definition screen with OLED display.
-
Application Area
- FTTH drop cables organize
- FTTH infrastructure optimization
Specifications
General Specification
| PARAMETERS | SPECIFICATION | |
|---|---|---|
| ENHANCED | PROBE | |
| Dimension(mm) | 140 x 75 x 26 | 90 x 15 x 15 |
| Weight(g) | 200 | 50 |
| Operational Temp(℃) | -10 to 50 | |
| Storage Temp(℃) | -20 to 75 | |
Technical Specifications
| PARAMETERS | SPECIFICATION | |
|---|---|---|
| ENHANCED | PROBE | |
| Fiber Type | 9/125um Single mode | 900um to 2mm |
| Type of Connector | SC/APC | |
| Operating Wavelengths(nm) | Multiple Wavelengths | |
| Detection Range(dBm) | -10 to -50 | -10 to -30 |
| Detection Accuracy(dB) | ±1.0 | |
| Testing time(s) | 3s | 3s |
| Displayed Result | No ONU/ONT ONU/ONT-G or E or XGS |
In Service Out of Service |
| Result Indication | Display & Vibration | |
| Battery | Lithium Polymer | |
| Battery Operating | Continuous operation > 8 hours Standby 40 hours |
Continuous operation > 10 hours Standby 40 hours |
| Charging Port | USB-C Type | |
Order Information (Diagonal Detectors)
| PART# | DESCRIPTIONS | NOTE |
|---|---|---|
| ICE-01 | INLINE CERTIFIER ENHANCED SC/APC Package | |
| ICE-02 | INLINE CERTIFIER ENHANCED SC/PC Package | |
| ICB-01 | INLINE CERTIFIER PROBE without Power Meter Function | Requires Inline Certifier Enhanced |
| ICB-02 | INLINE CERTIFIER PROBE with Power Meter Function |
