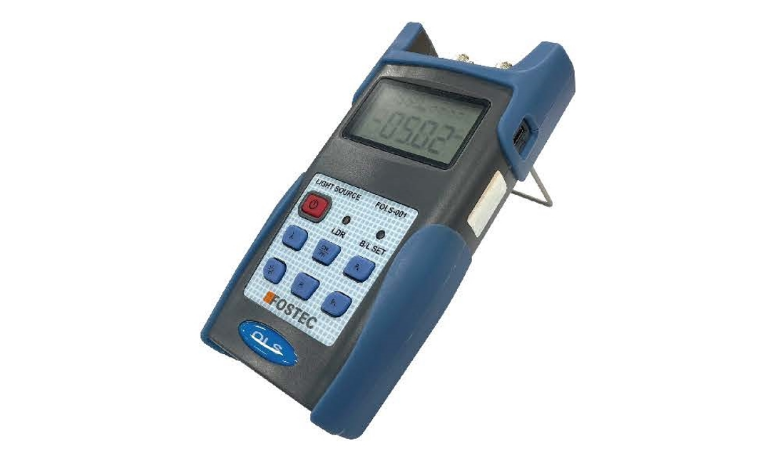

Portable Light Source
It is a device that generates light of a specific wavelength in an optical communication system and is used for testing and maintaining optical fiber networks. It plays an important role in measuring the insertion loss, connection status, and performance of optical fibers when used with an optical power meter.
Optical Access&MaintenancePortable light source
Light Source
- Product Information
- Specifications
- Order Information
-
Features
- Stable optical signal output.
- Support for various wavelength modes.
- Easy portability and robust design.
- Perfect compatibility with optical power meters.
-
Application Area
- Telecommunications networks
- Data centers
- Defense and aerospace
- Rail and transport networks
Specifications
| Type | FOLS002-SM |
|---|---|
| Operating Wavelength | 850/13001310/1550 (Others specify on requests, Max wavelength is 5) |
| Applicable Fiber | SM, MM |
| Laser Type | FP-LD(others specify on requests) |
| Ouput | ≥-7 (can be adjustable, others specify) |
| Stability | ±0.1 |
| Accuracy | ±0.05 |
| Frequency | CW, 270, 1K, 2K |
| Fiber Port | FC/PC or FC/SC interchangeable |
| Alkaline Battery | 3XAA, 1.5V |
| Operating Time | 45 |
| Operation Temperature | -10~+60 |
| Storage Temperature | -25~+70 |
| Size | 200x90x50 |
| Weight | 285 |
Order Information (Portable Light Source)
Preparing
-
Read More

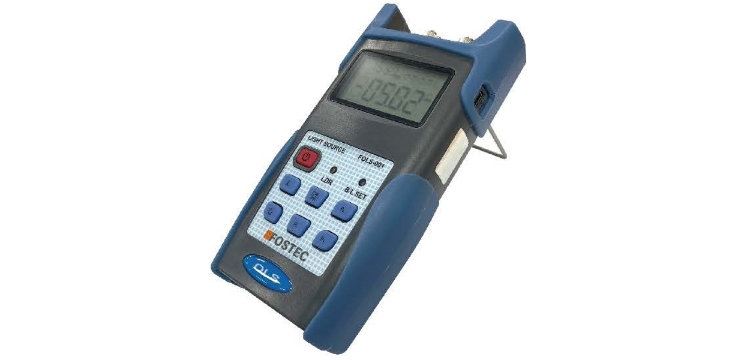

FOLS-001
FOLS-001
It is a portable measuring instrument used with an optical power meter and outputs light with wavelengths of 850, 1300, 1310, and 1550 nm.
-
Read More

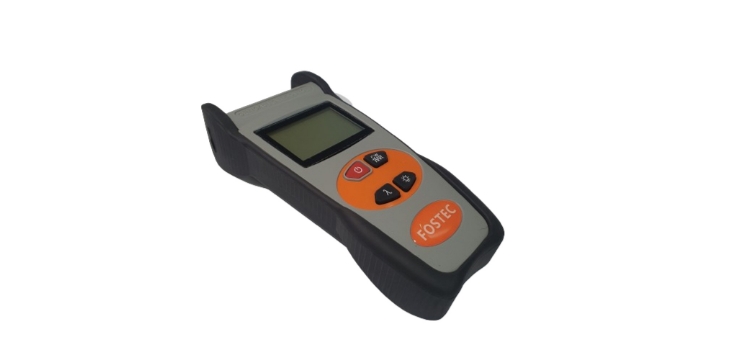

FOLS-002
FOLS-002
It is a portable measuring instrument used with an optical power meter and outputs light with wavelengths of 850, 1300, 1310, and 1550 nm.
-
Read More

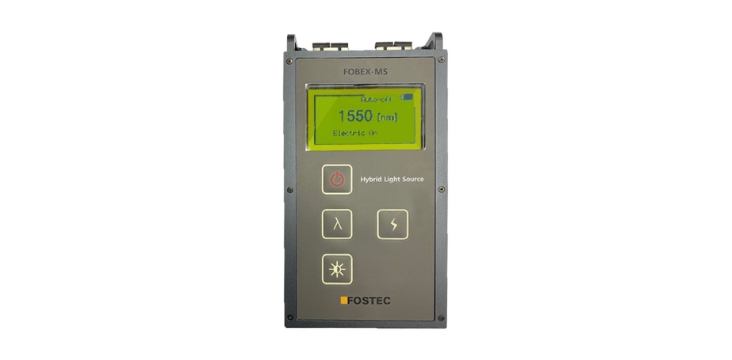

FOBEX-MS
FOBEX-MS
This product generates a stable light source to measure the output value of an optical signal and is used together with the FOBEX-MP product.
-
Read More

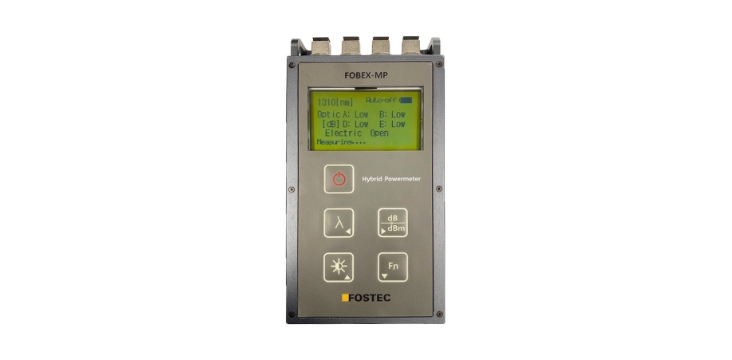

FOBEX-MP
FOBEX-MP
