- MPO TEST SET
![[크기변환]그림3.png](/user/media/getFile.do?fileId=MEDIAFILE_0000001388)

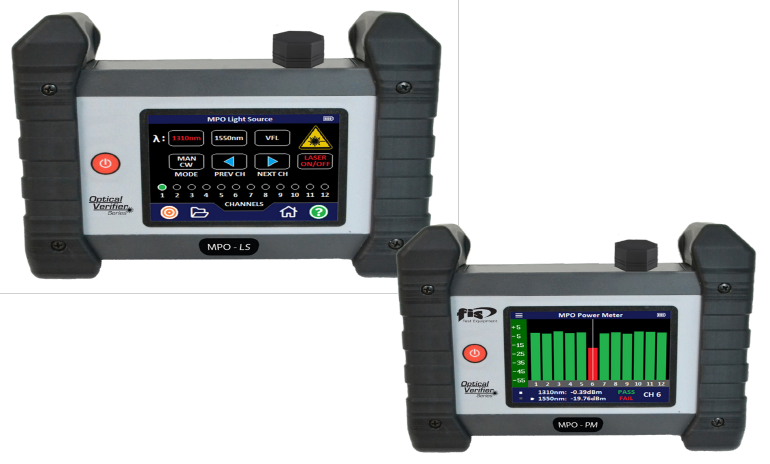

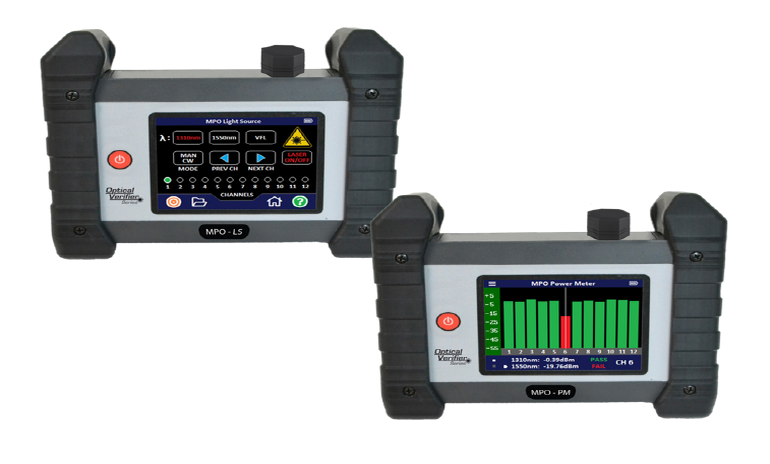

MPO TEST SET
The multi-fiber MPO Loss Test Set, which is available in Singlemode or Multimode configurations, is a two-piece kit that contains a power meter and light source designed to test and certify MPO-style assemblies quickly and easily. This standard set will provide the user with instantaneous network attenuation readings over all 12 fibers, and has the ability to verify A, B, C, and 40-Gig polarities. The light source can emit optical signals at a constant rate or with various modulated tones for fiber identification. It can be set to any channel or scan all channels at both wavelengths automatically. These units will work in virtually any MPO applications.
- Product Information
- Specifications
- Order Information
-
Features
• Available in Dual 1310/1550nm or 850/1300nm
• Measures ORL (Optical Return Loss)
• MPO Connector Video Scope Inspection System
• VFL operates in Manual or Sequential cycle modes
• Comfortable hand-held design
• Can store up to 1,000 test results
• Test results transferable to PC reporting software
• Customizable pass/fail thresholds
• (2) Type A reference cords with mating sleeves included
• Light Source can be operated in a variety of sequences: Auto cycle, Manual cycle, or Sequential cycle Rugged case design Optional gender change tool available -
Application Area
- Telecommunications networks
- Data centers
- Defense and aerospace
- Rail and transport networks
Specifications
| Light Source | |
| Lasers | Multimode: 850 nm / 1300nm Singlemode: 1310 nm / 1550 nm |
| Output Power | -5dBm typical |
| Modulation Modes | Continuous Wave; 270Hz, 1 KHz, 2KHz |
| Optical Return Loss Specs (ORL) | |
| ORL Dynamic Range | 0-55dB |
| ORL Wavelengths | 1310nm / 1550nm |
| ORL Accuracy | +/- 1dB @ -40dB Reflections |
| Resolution | 0.01dB |
